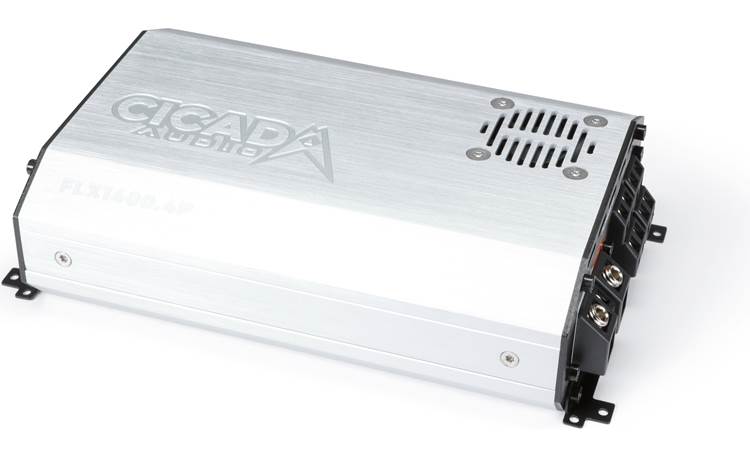

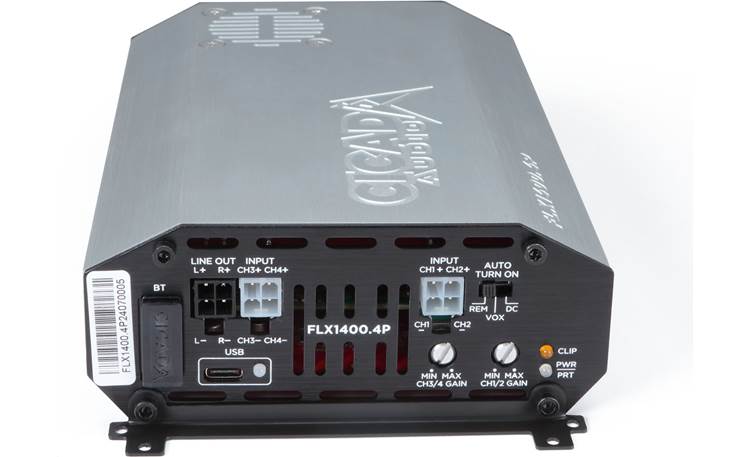

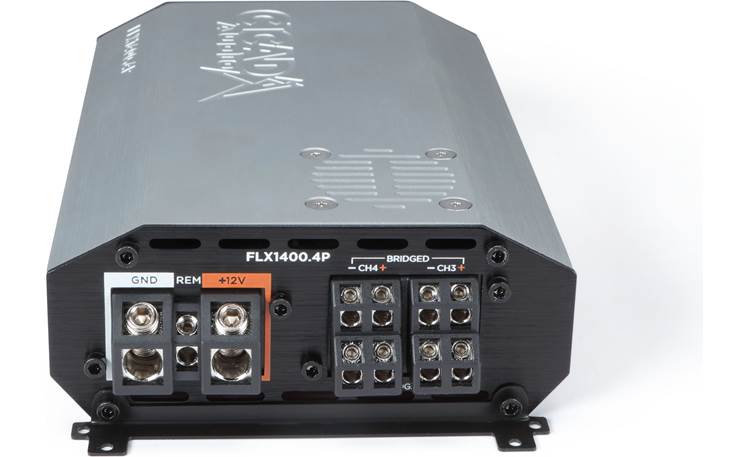

Cicada Audio FLX1400.4P FLX Pro 4-channel motorcycle amplifier

4 CHANNEL DSP POWER AMPLIFIER

Requires 4 AWG Power Wire – HDPG4K

• 4 X 200 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 225 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 300 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 350 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 600 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 700 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8 V – 16 V
• Current Draw (Music): 50 A
• Current Draw (Max): 220 A
• Recommended Fuse (Music): 120 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91 dB
• Crossover LPF/FULL/HPF: 30 TO 300Hz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• DSP Crossover HPF/LPF: 0 TO 20kHz
• Slope configurable 6/12/18/24/48dB
• DSP PEQ – 8 BANDS
• Q’s Adjustable from 0.05 – 20
• THD + N (10% Rated Power): 0.1%
• Product Dimensions (Inches / Millimeters): 7.6 x 4.9 x 2.0 in / 193 x 124 x 51 mm
